Battery Pack Cycle Test System
#Charge/Discharge #Cycle Test #Portable #Cell Balancing #DCR #TRA #Sequence #Metadata #Big Data
· Charge/Discharge & Cycle Test
· Portable System
· DC Internal Resistance
· TRA
· Sequence Builder
· Cell Balancing Charge
· Over Discharge Test
· Metadata Compiler
· Big Data Manager
Related products

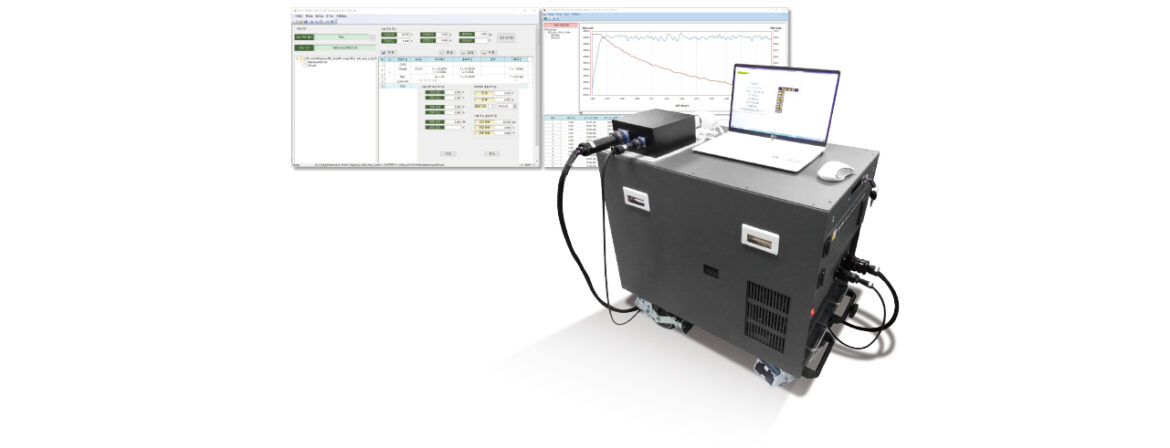

Battery Pack Cycle Test System Q4100 is a high-performance system that can test and evaluate Battery Modules or Battery Packs and can be manufactured as a portable type according to the user's request. This system is a special system which is composed of a single system of Cycle Test and Cell Balancing Test. It is capable of high current / high voltage test, high speed control, high speed measurement, high speed data storage, various pattern control and cell voltage monitoring.
Charge/Discharge & Cycle Test
Portable System
DC Internal Resistance
TRA
Sequence Builder
Cell Balancing Charge
Over Discharge Test
Metadata Compiler
Big Data Manager

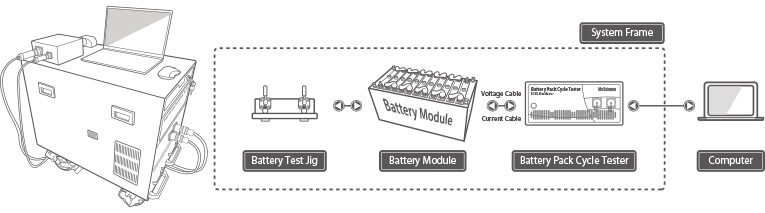

System Configuration
System Components
System Frame
Cycle Tester
Battery Module
Test Software
System Specification
■ Hardware
| Channel | 1Channel | |
| Configuration | 1Ch per 1Subrack | |
| Test Pack Type | 8-cell Serial | |
| Operation Mode | CC, CV, CP, CC/CV, OCV, Rest, Pulse, Pattern | |
| Voltage Programming Range | 5 ~ 40V | |
| Voltage Programming Accuracy | Under FS ±0.1% | |
| Charge Current Programming Range | 20A, 2A (2Range) | |
| Charge Current Programming Accuracy | FS ±0.1% | |
| Discharge Current Programming Range | 100A (1Range) | |
| Discharge Current Programming Accuracy | FS ±0.1% | |
| Control Interval | 100mSec | |
| Data Acquisition Interval | 10mSec | |
| Data Storage Interval | 10mSec | |
| Cell Balancing Channel | 8Ch | |
| Cell Balancing Resolution | 1mV, 1mA | |
| Cell Balancing Accuracy | Balancing Voltage: <10mV | |
| Temperature Measurement | RTD 1Ch | |
| Protect Option | Over Voltage/Over Current/Over Temperature/Circuit Over Temperature/EMG S/W | |
■ Software
| Cycle Condition Management | Input and manage detailed conditions according to production process conditions Up to 100 steps available Repeat a given step for a given number of times |
|
| Pulse Discharge Function |  |
|
| Live Monitoring | Live monitoring of data of each cell in the current process (Voltage, current, capacity, time, internal resistance, Watt Hr, temperature) Start/Pause/Restart/Stop job check communication status and error log) |
|
| Data Management | Report function of measurement data (per tray, per cell) Excel, Text file conversion (print function) |
|
| Cell Protection | Detecting set voltage, current abnormality or less during charging/discharging -> Channel stop Full channel stop when circuit overheated |
|
| Data Recovery | Recover lost data (within 7days) | |
| Automatic Stop | Automatic stop when voltage/ current suddenly changes when rated voltage / current is exceeded | |
| Emergency Stop | Pause work in progress in case of emergency stop The process will re-start after releasing select progress/restart/stop |
|
